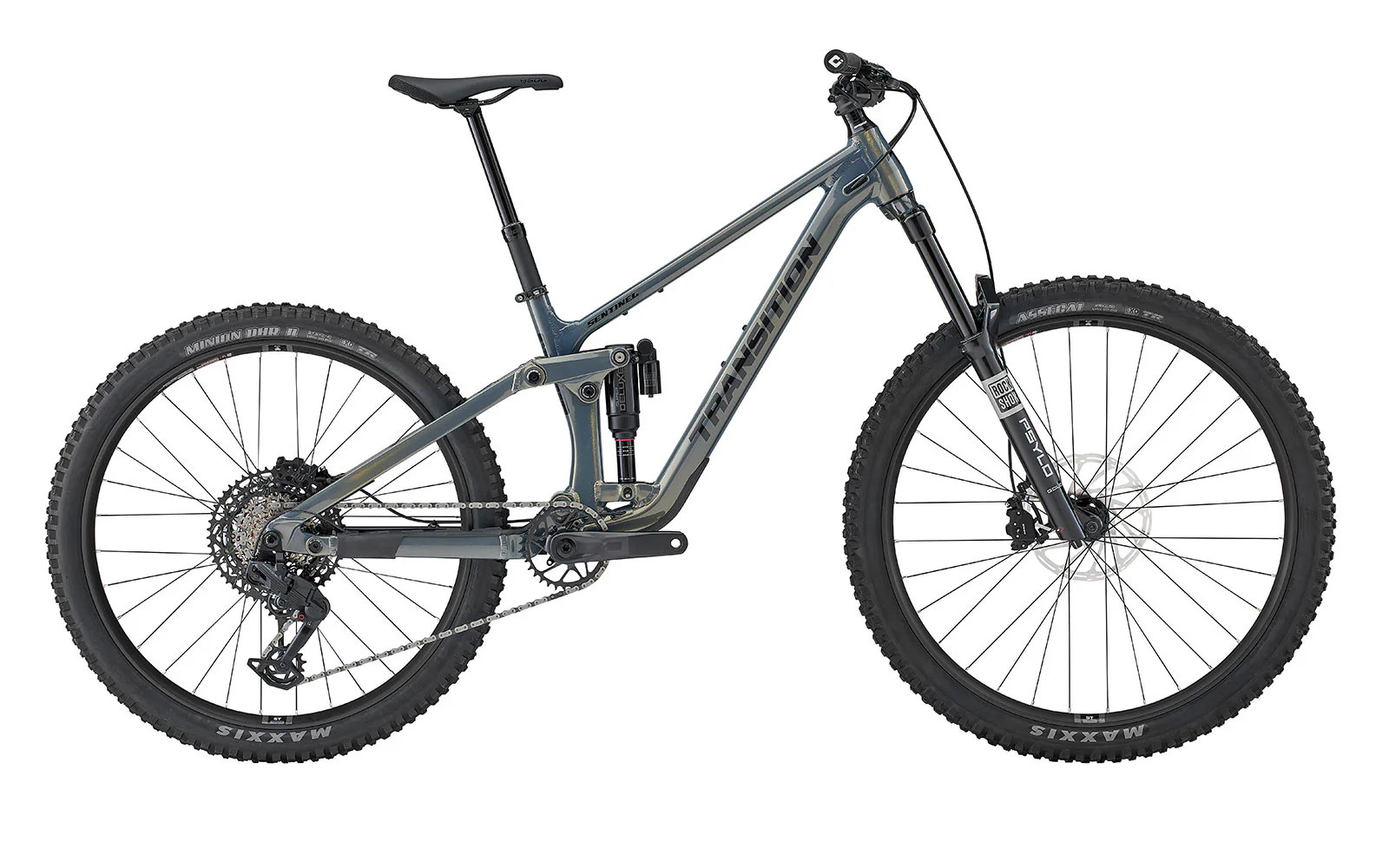

Transition Sentinel V3

The Sentinel rides the lines between planted bottomless sender and playful, poppy trail pony. This leaves it right in the sweet spot, as we like to call it. Its versatile attitude helps riders excel and push their limits, making it the "one bike" most will need. Its intuitive nature is easy to get acquainted with; you'll find yourself sending lines, jumps, and maneuvers you always felt were beyond your ability. Where before you went around, now you go over. Where you pushed up, now you pedal. Where you rolled, now you boost. It's time to Send-It-All.

The Transition Sentinel V3 is a highly capable all-mountain machine boasting 150mm of rear travel paired with a 160mm fork. Available in both premium Carbon and rugged Alloy frames, it features progressive geometry tailored for aggressive descending while maintaining efficient pedaling dynamics. Complete with top-tier suspension options from Fox and RockShox, powerful 4-piston brakes, and wide-range 12-speed drivetrains, the Sentinel is built to conquer everything from steep tech to flowy jump trails. Mixed-wheel compatibility ensures you can tune the ride to your exact style.



Key Features:

• 150mm Rear / 160mm Front Travel: The perfect balance of suspension for eating up chunky descents while remaining snappy, supportive, and responsive on the pedals and through jump lines.

• Premium Frame Options: Choose between a lightweight, stiff Carbon frame or a durable, bombproof Alloy chassis, both utilizing Transition's legendary Speed Balanced Geometry (SBG).

• Mixed Wheel (Mullet) Compatibility: Run a full 29er setup for all-out speed and rollover, or swap to a 27.5" rear wheel for enhanced cornering agility and a playful, flickable rear end.

• Top-Tier Drivetrain & Braking: Equipped with reliable, crisp-shifting 12-speed drivetrains (including Shimano XT Di2 and SRAM Eagle T-Type options) and powerful 4-piston brakes for ultimate control on the steepest descents.

• High-Performance Suspension: Outfitted with premium, highly adjustable shocks and forks from Fox and RockShox, allowing you to dial in your perfect ride feel for any terrain.

---

Technical Specifications

Component	Carbon XT Di2	Carbon Eagle 90	Alloy Eagle 90	Alloy Eagle 70	Carbon Frameset
Frame Material	Sentinel Carbon 150mm	Sentinel Carbon 150mm	Sentinel Alloy 150mm	Sentinel Alloy 150mm	Sentinel Carbon 150mm
Fork	Fox 36 Factory Grip X2 160mm	RockShox Lyrik Ultimate 160mm	RockShox Lyrik Ultimate 160mm	RockShox Psylo Gold RC 160mm
Rear Shock	Fox Float X2 Factory 205x60mm	RockShox Super Deluxe Ultimate 205x60mm	RockShox Super Deluxe Ultimate 205x60mm	RockShox Super Deluxe Base 205x60mm	Fox Float X2 Factory 205x60mm
Rims	DT Swiss XM 1700 Spline 30	DT Swiss M 1900 Spline 30	DT Swiss M 1900 Spline 30	WTB ST i30
Front Hub	DT Swiss 350	DT Swiss 370	DT Swiss 370	Novatech D791SB
Rear Hub	DT Swiss 350 Ratchet DEG 72 DF - Anti Kickback	DT Swiss 370 Ratchet LN	DT Swiss 370 Ratchet LN	Novatech D902SB
Spokes	DT Swiss Competition Race	DT Swiss Champion	DT Swiss Champion	Pillar Double Butted
Front Tire	Schwalbe Albert Trail Evo Ultra Soft 29x2.5"	Maxxis Assegai 3C MaxxGrip EXO+ 29x2.5"	Maxxis Assegai 3C MaxxGrip EXO+ 29x2.5"	Maxxis Assegai EXO/TR 29x2.5"
Rear Tire	Schwalbe Albert Trail Evo Soft 29/27.5x2.5"	Maxxis Minion DHR II 3C MaxxTerra EXO+ 29/27.5x2.4"	Maxxis Minion DHR II 3C MaxxTerra EXO+ 29/27.5x2.4"	Maxxis Minion DHR II EXO/TR 29/27.5x2.4"
Crankset	Shimano XT FC-8200 165mm	SRAM Eagle 90 DUB 165mm	SRAM Eagle 90 DUB 165mm	SRAM Eagle 70 DUB 165mm
Chainring	29(Shimano 30t) 27.5(Shimano 32t)	29(SRAM 30t) 27.5(SRAM 32t)	29(SRAM 30t) 27.5(SRAM 32t)	29(SRAM 30t) 27.5(SRAM 32t)
Rear Derailleur	Shimano XT Di2 RD-M8250-SGS	SRAM Eagle 90	SRAM Eagle 90	SRAM Eagle 70
Cassette	Shimano XT CS-M8200 10-51t	SRAM XS 1275 T-Type 10-52t	SRAM XS 1275 T-Type 10-52t	SRAM XS 1270 10-52t
Chain	Shimano XT CN-8100	SRAM Eagle 90	SRAM Eagle 90	SRAM Eagle 70
Shifters	Shimano XT Di2 SW-M8250-R	SRAM Eagle 90 MMX	SRAM Eagle 90 MMX	SRAM Eagle 70 MMX
Brakes	Shimano XT M8220 4 Piston	SRAM Maven Silver	SRAM Maven Silver	SRAM Maven Bronze
Front Brake Rotor	Shimano RT86 203mm	SRAM Centerline 200mm	SRAM Centerline 200mm	SRAM Centerline 200mm
Rear Brake Rotor	Shimano RT86 203mm	SRAM Centerline 180mm	SRAM Centerline 180mm	SRAM Centerline 180mm
Handlebars	RaceFace Turbine R 40mm	RaceFace Aeffect R 40mm	RaceFace Aeffect R 40mm	RaceFace Aeffect R 40mm
Grips	ODI Elite Flow Lock-On	ODI Elite Flow Lock-On	ODI Elite FLow Lock-On	ODI Elite Flow Lock-On
Stem	RaceFace Turbine R 40mm	RaceFace Turbine R 40mm	RaceFace Turbine R 40mm	RaceFace Turbine R 40mm
Headset	FSA No.57E	FSA No.57E	FSA No.57E	FSA No.57E
Seatpost	Fox Transfer Factory	OneUp Dropper Post	OneUp Dropper Post	SDG Tellis
Saddle	SDG Bel Air 3 LUX	SDG Bel Air 3	SDG Bel Air 3	SDG Bel Air 3

All specifications subject to change without notice

---

Sizing Guide

Rider Height	Suggested Frame Size
5'2" - 5'6"	Small
5'6" - 5'10"	Medium
5'10" - 6'2"	Large
6'2" - 6'6"	X-Large

Sizing

Available in multiple sizes to fit a wide range of riders.
Contact us if you need help choosing the correct size.

---

🛒 Ready to Ride?

Order your Transition Sentinel V3 today and experience one of the most respected mountain bikes ever made.
