Transition Sentinel V3 - Closeout Models

It's forgiving do-it-all attitude truly blurs the lines between planted bottomless sender and playful poppy trail pony. Whether you're chasing EWS dreams or just a weekend afternoon escape, it will bring out the best in you. So easy to get acquainted with you'll find yourself sending lines, jumps and maneuvers you always felt were beyond your ability. Where before you went around, now you go over. Where you pushed up, now you pedal. Where you rolled, now you boost.

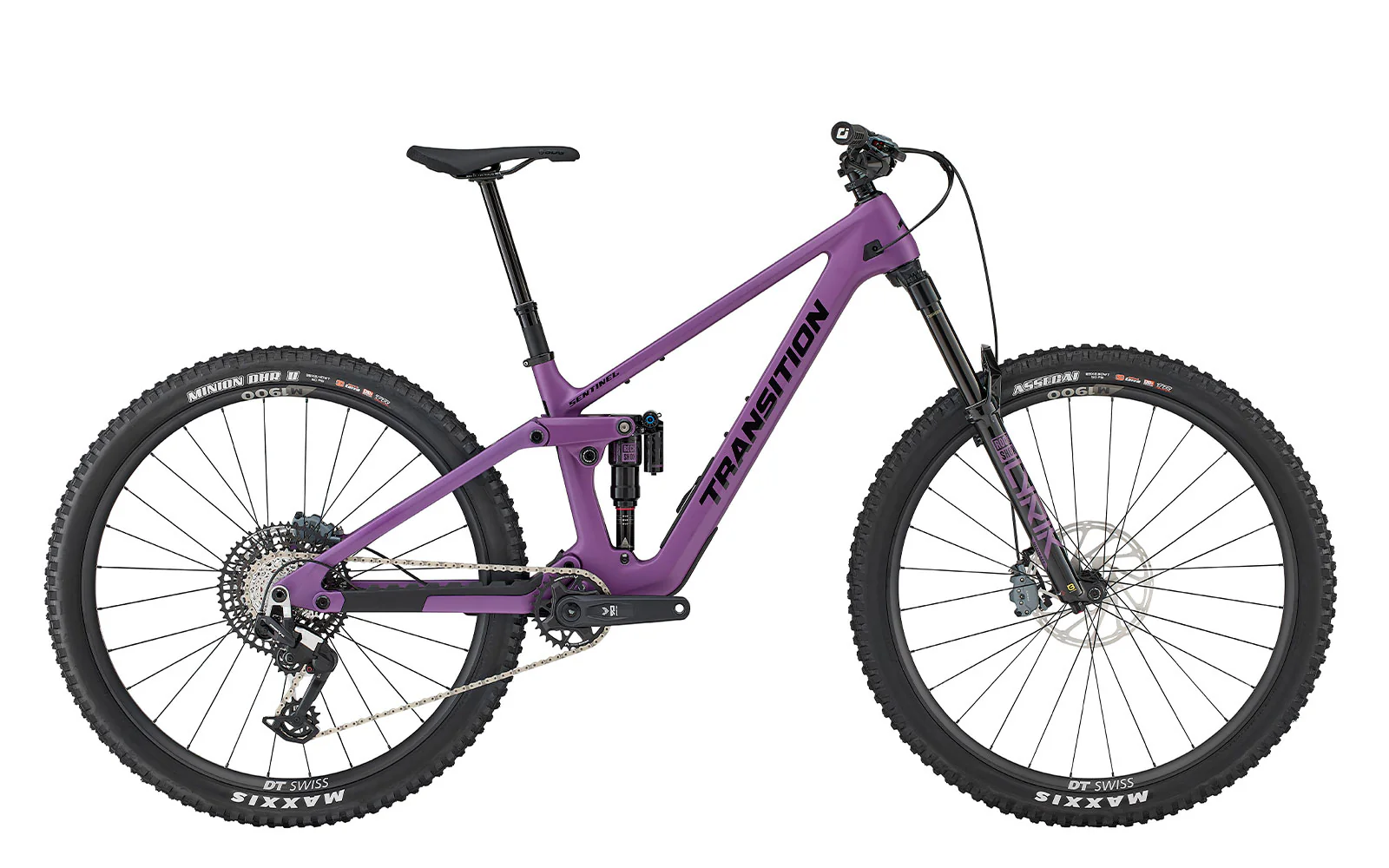

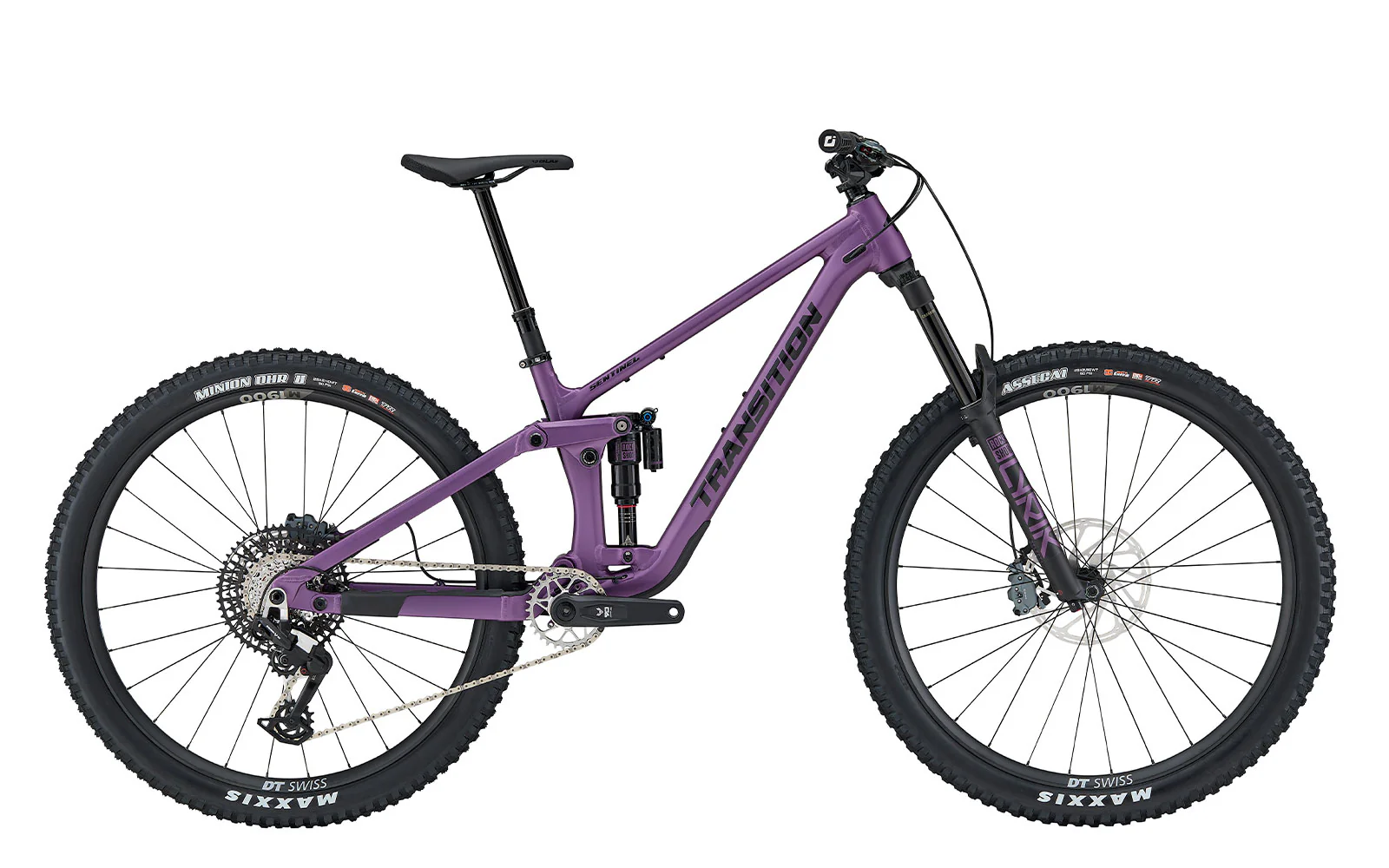

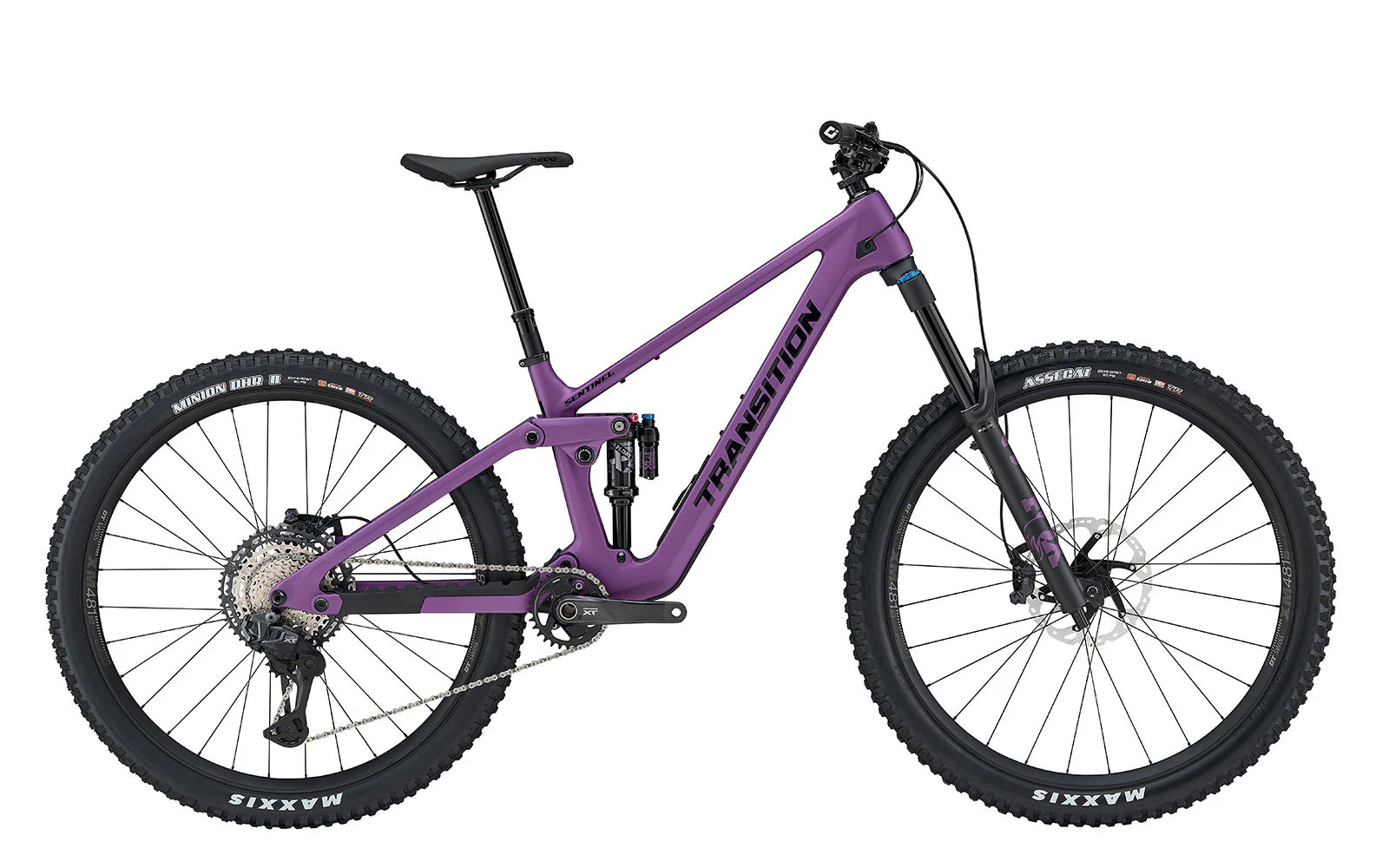

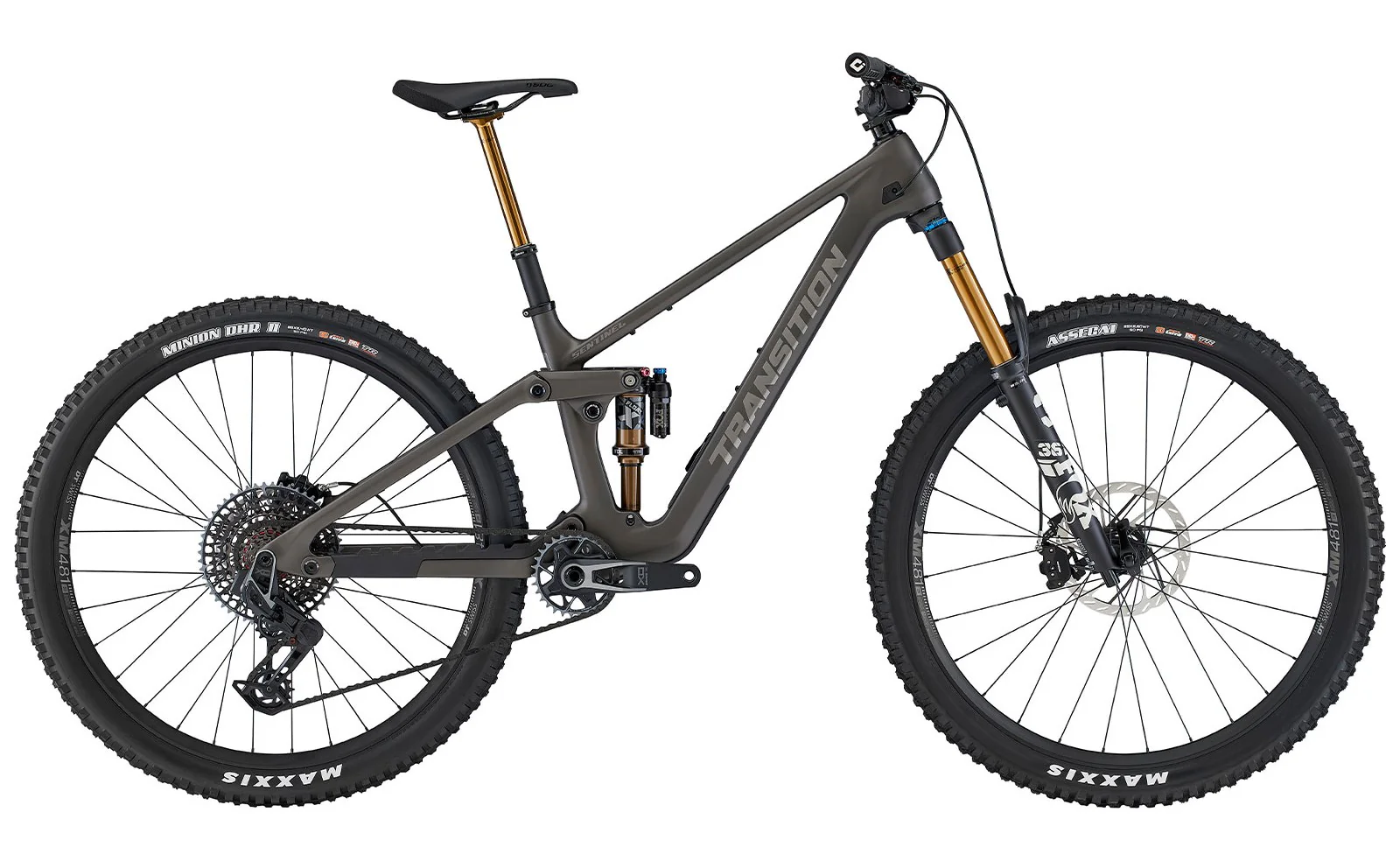

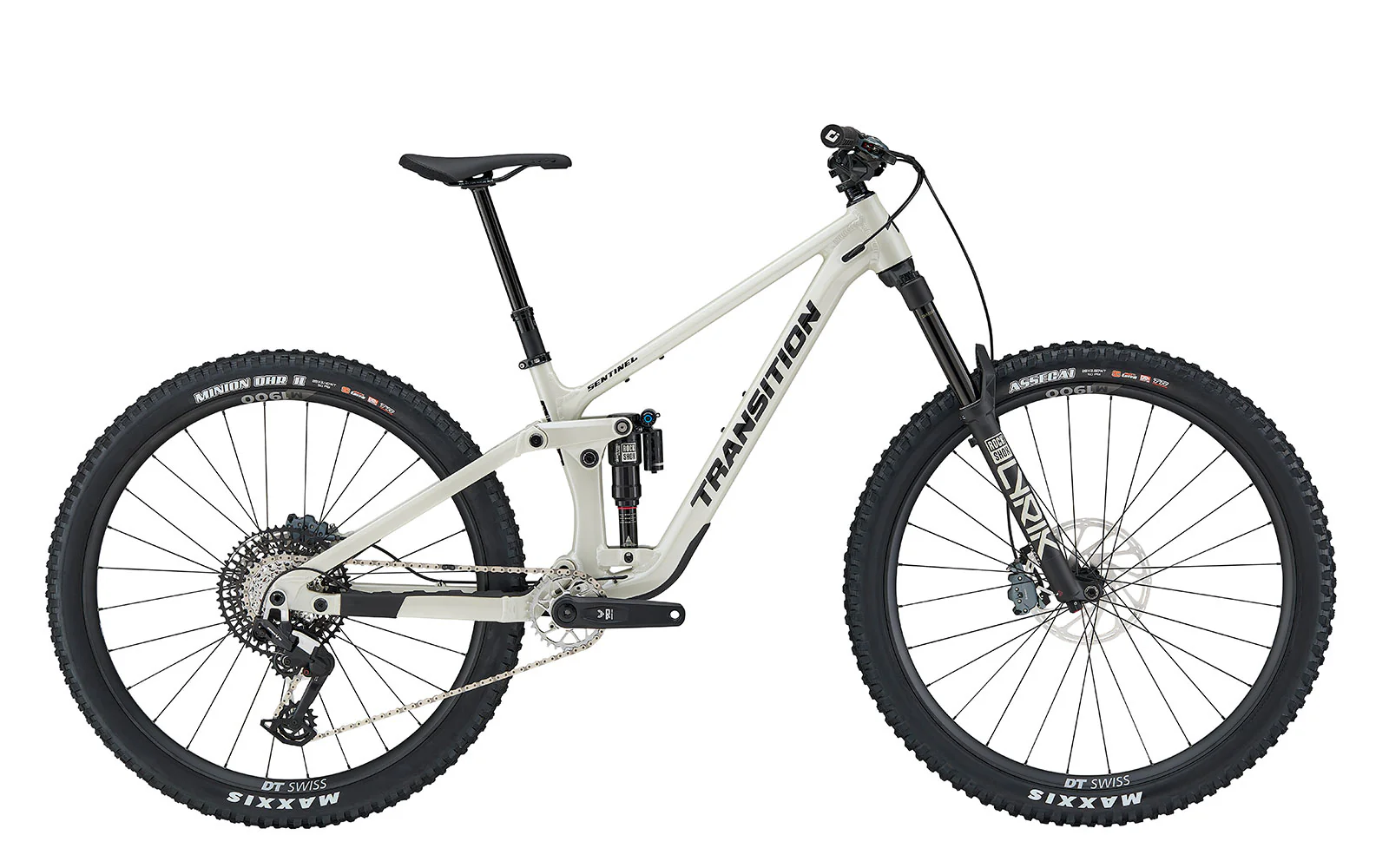

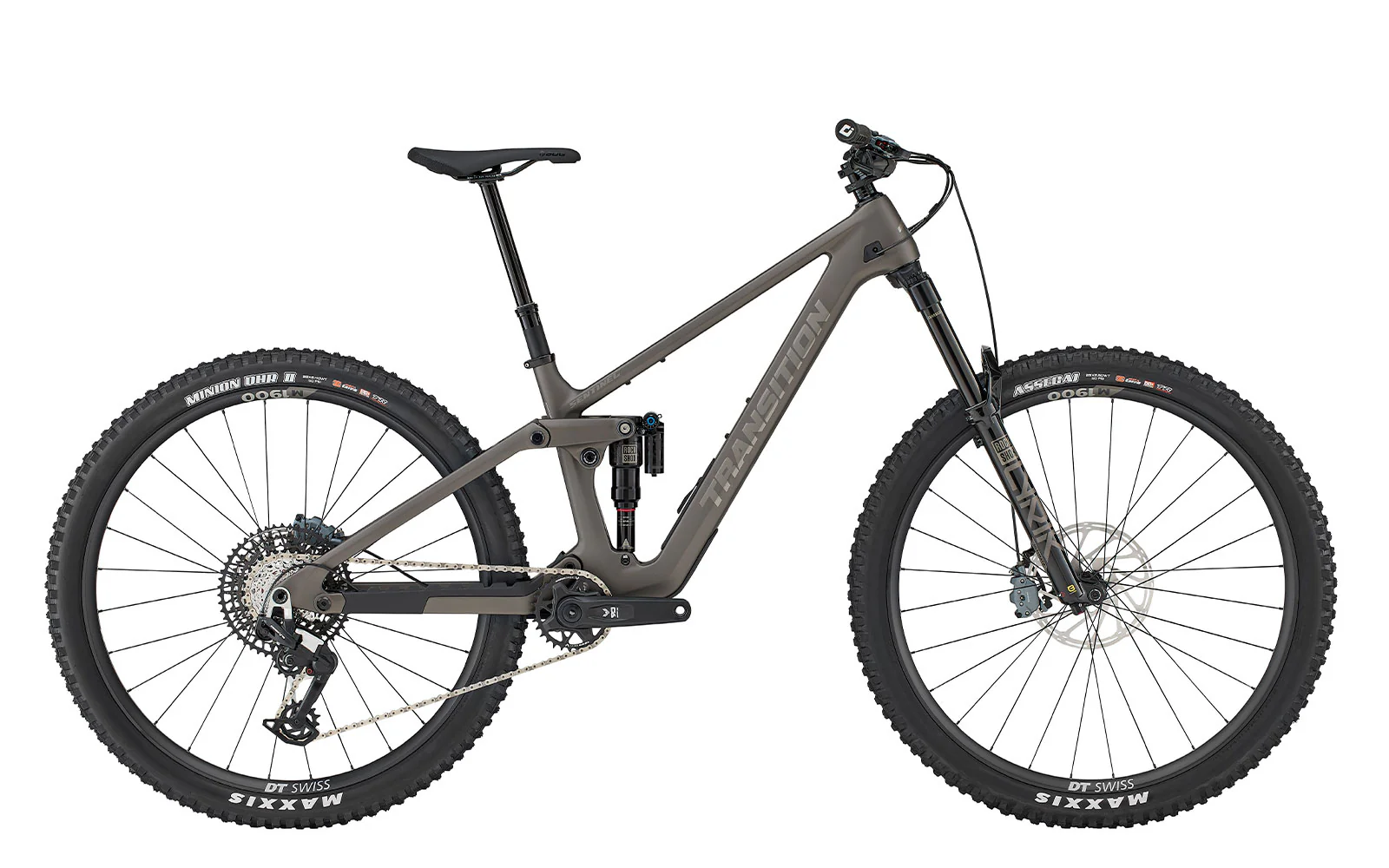

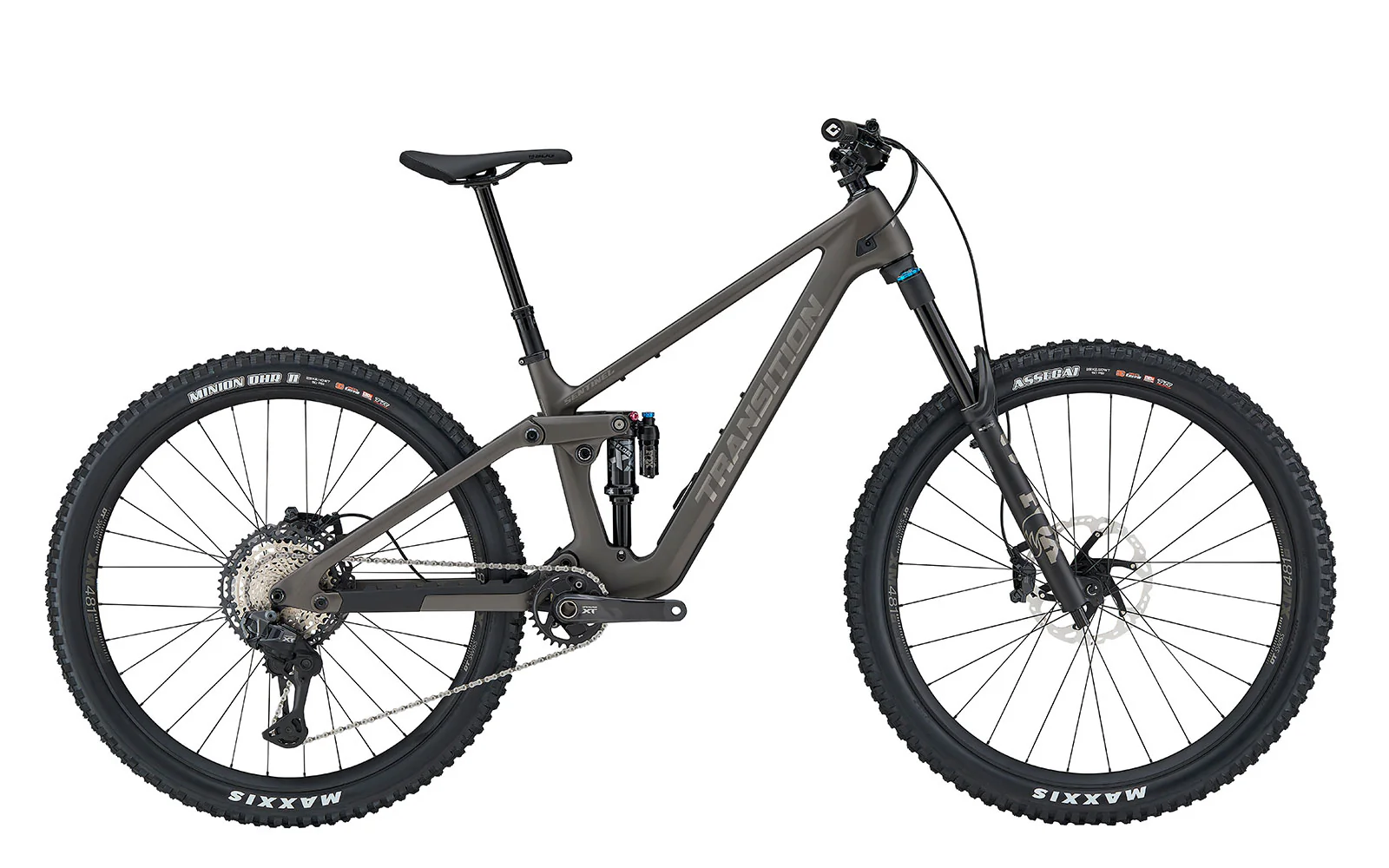

The Transition Sentinel V3 is a highly capable 29-inch all-mountain machine featuring 150mm of rear wheel travel paired with a 160mm fork. Built around Transition's renowned Speed Balanced Geometry (SBG), it is designed to conquer aggressive descents while remaining remarkably efficient on the climbs. Available in both premium carbon and robust alloy frame options, it is equipped to handle everything from local singletrack to full-blown enduro race stages.



Key Features:

• Optimized Travel: 150mm of rear wheel travel paired with a 160mm fork offers the perfect balance of big-hit absorption and efficient trail-pumping agility.

• Speed Balanced Geometry (SBG): Transition's signature geometry ensures the bike remains nimble and responsive at low speeds while providing confidence-inspiring stability when blasting down steep, fast trails.

• Full 29-Inch Wheels: Built to roll over absolutely anything in its path, the dual 29er setup carries momentum through rock gardens and provides massive traction in the corners.

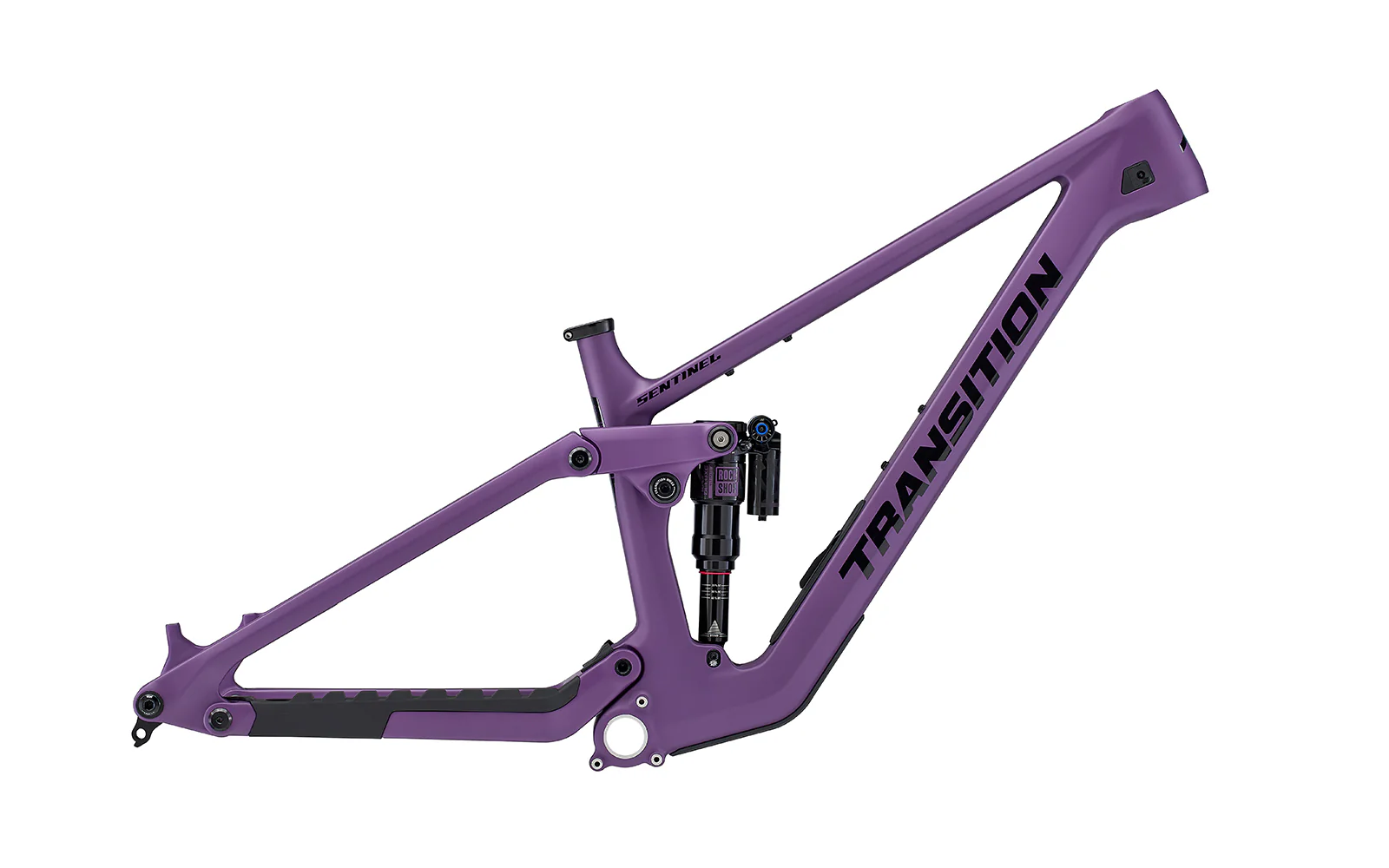

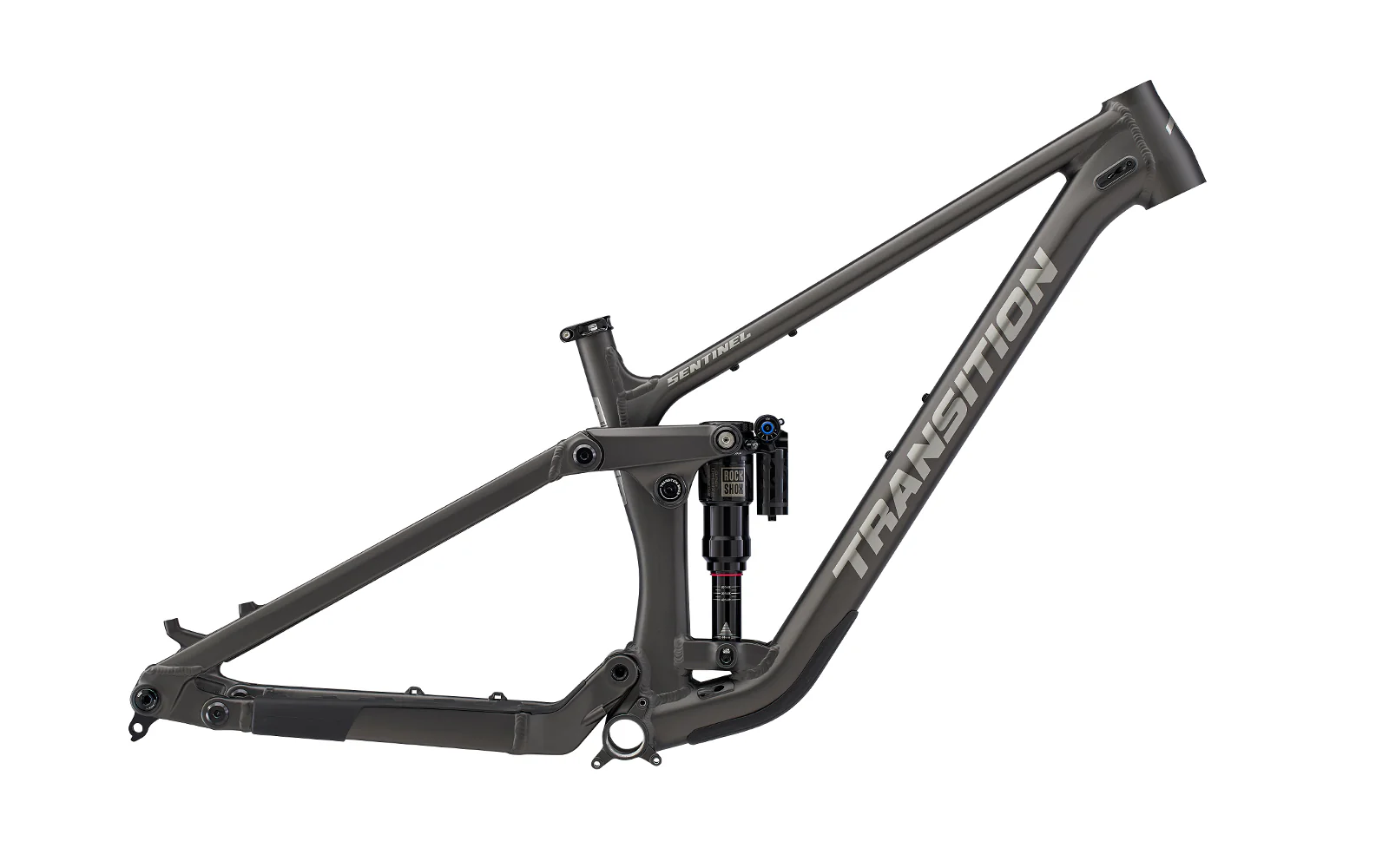

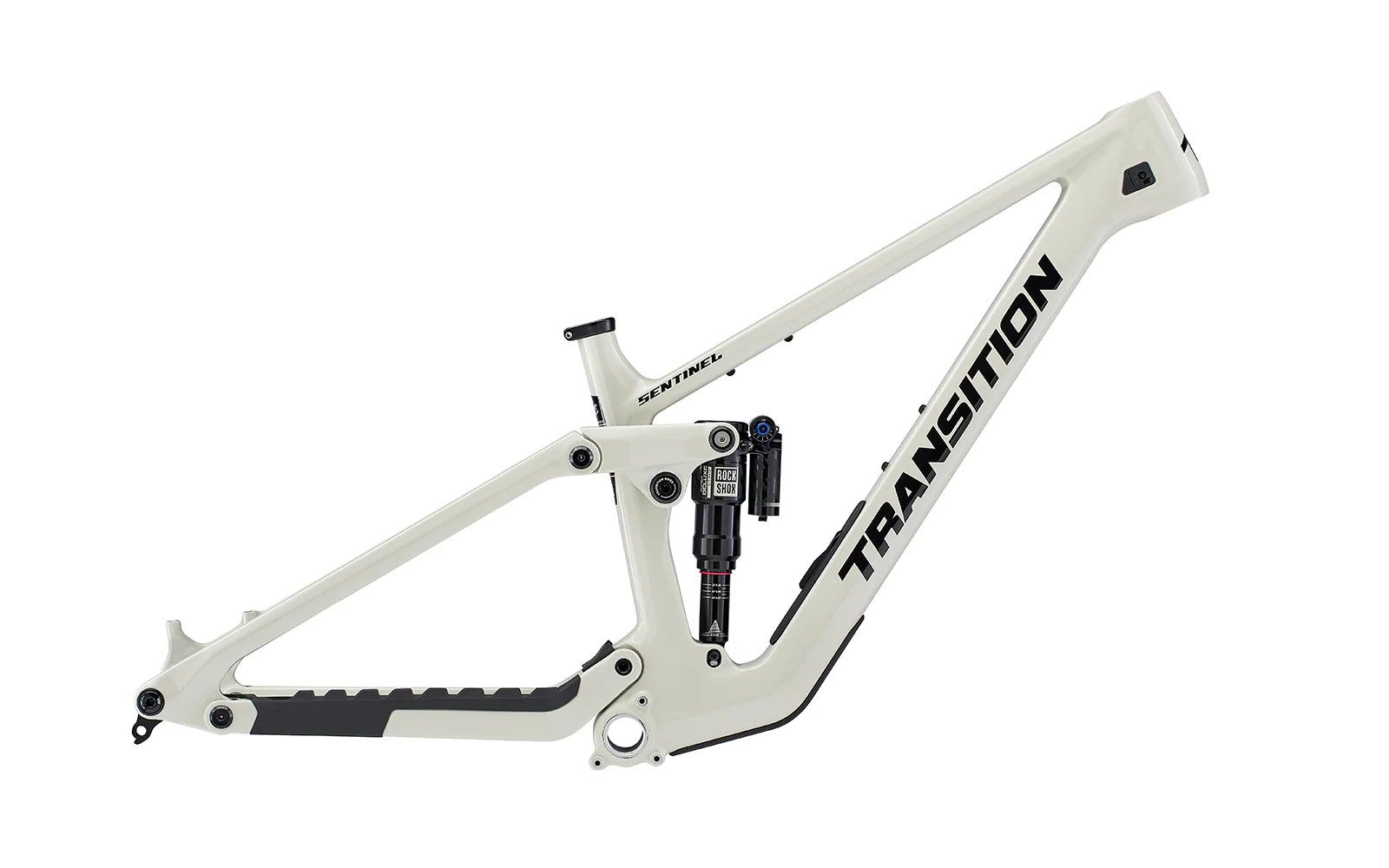

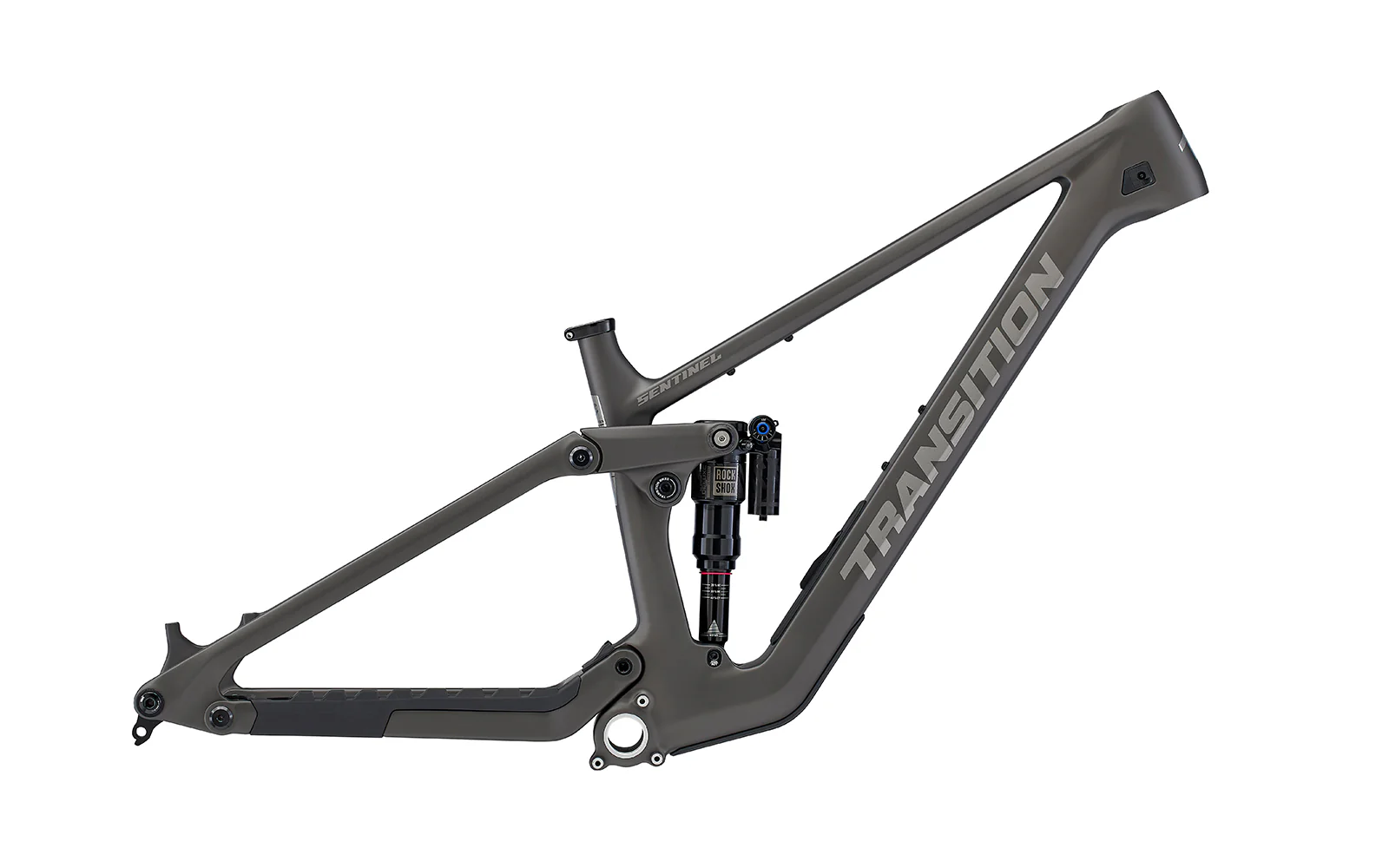

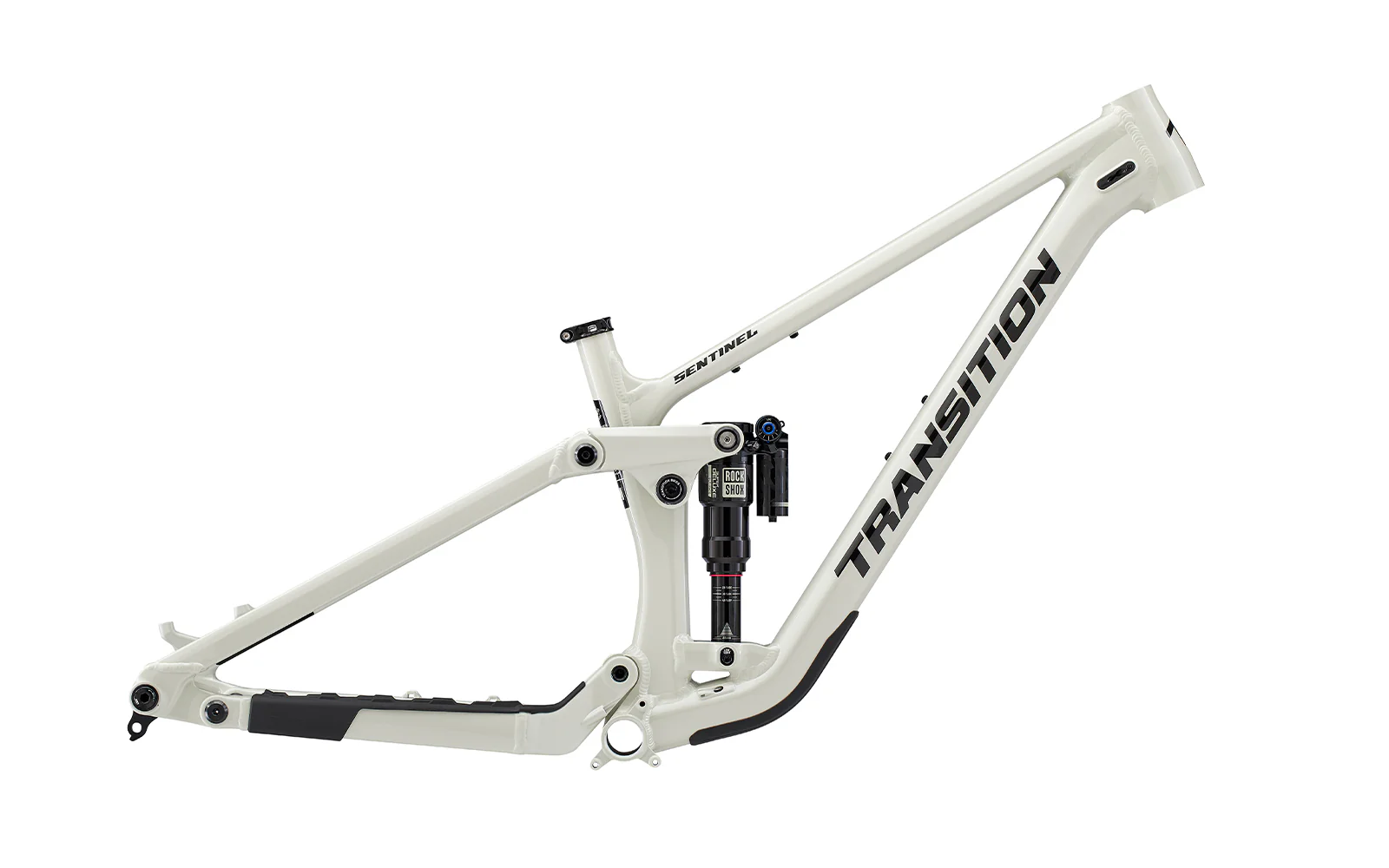

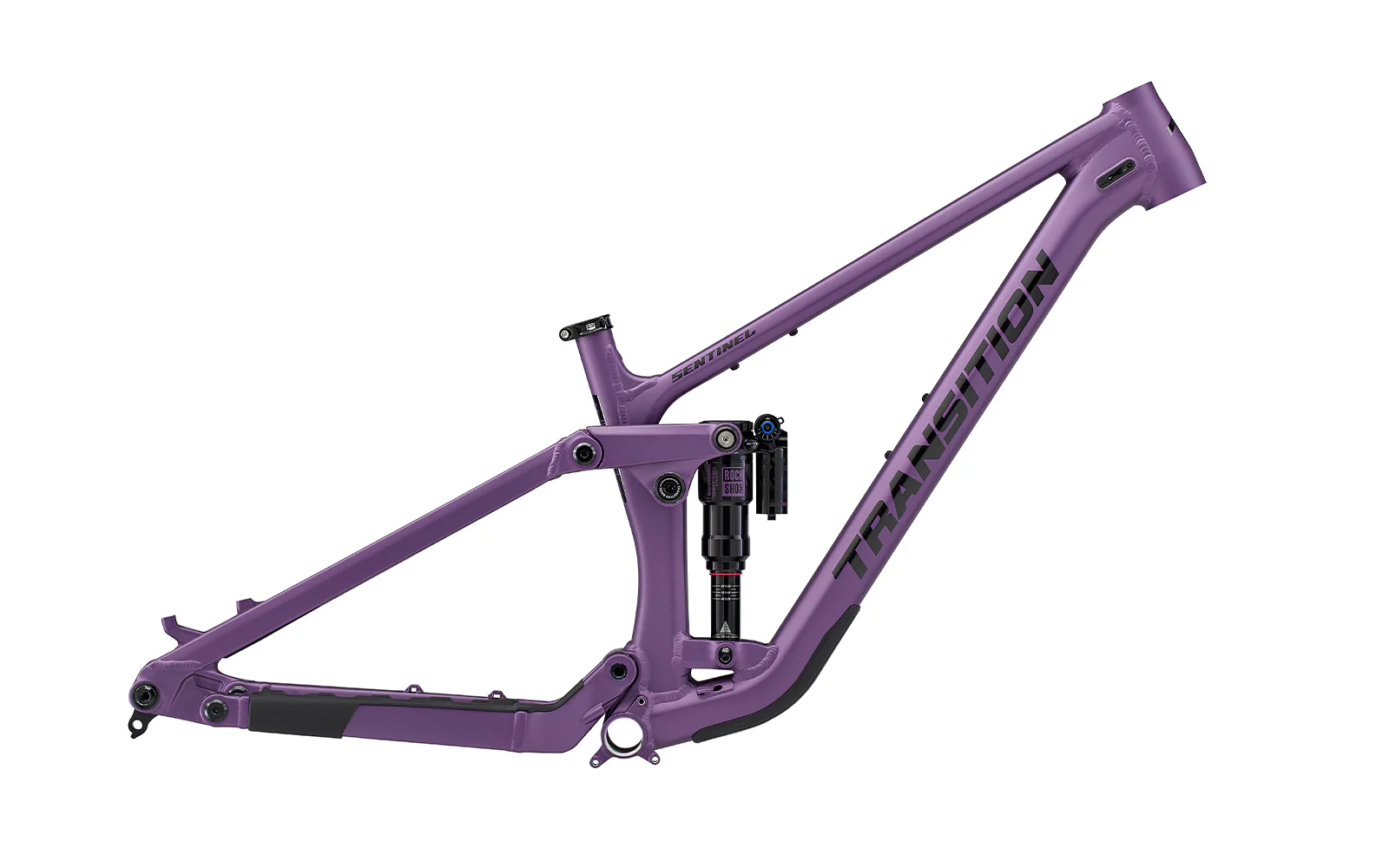

• Carbon and Alloy Options: Choose between a lightweight, stiff carbon fiber chassis or a highly durable, cost-effective aluminum frame—both delivering the exact same geometry, strength, and ride feel.

• Premium Build Kits: Spec'd for reliable performance across the board, featuring top-tier options like SRAM Eagle Transmission, precise Shimano drivetrains, and high-performance Fox or RockShox suspension packages.

---

Technical Specifications

Component	Carbon XO AXS	Carbon XT Di2	Carbon XT	Carbon Eagle 90	Alloy Eagle 90	Carbon Frameset	Alloy Frameset
Frame Material	Sentinel Carbon 150mm	Sentinel Carbon 150mm	Sentinel Carbon 150mm	Sentinel Carbon 150mm	Sentinel Alloy 150mm	Sentinel Carbon 150mm	Sentinel Alloy 150mm
Fork	Fox Float 36 Grip X2 Factory 160mm	Fox Float 36 Grip X2 Performance Elite 160mm	RockShox Lyrik Base 160mm	RockShox Lyrik Ultimate	RockShox Lyrik Select+
Rear Shock	Fox Float X Factory 205x60mm	Fox Float x Performance Elite 205x60mm	RockShox Super Deluxe Ultimate 205x60mm	RockShox Super Deluxe Ultimate 205x60mm	RockShox Super Deluxe Select+ 205x60mm	RockShox Super Deluxe Ultimate 205x60mm	RockShox Super Deluxe Ultimate 205x60mm
Rims	DT Swiss XM 481	DT Swiss XM 481	DT Swiss M 1900 Spline 30	DT Swiss M 1900 Spline 30	DT Swiss M 1900 Spline 30
Front Hub	DT Swiss 350 Classic DEG	DT Swiss 350 Classic DEG	DT Swiss 370 Ratchet LN	DT Swiss 370 Ratchet LN	DT Swiss 370 Ratchet LN
Rear Hub	Front Hub	DT Swiss 350 Classic DEG	DT Swiss 350 Classic DEG	DT Swiss 370 Ratchet LN	DT Swiss 370 Ratchet LN	DT Swiss 370 Ratchet LN
Spokes	DT Swiss Competition	DT Swiss Competition	DT Swiss Champion	DT Swiss Champion	DT Swiss Champion
Front Tire	Maxxis Assegai 3C EXO+ 29x2.5"	Maxxis Assegai 3C EXO+ 29x2.5"	Maxxis Assegai 3C EXO+ 29x2.5"	Maxxis Assegai 3C EXO+ 29x2.5"	Maxxis Assegai 3C EXO+ 29x2.5"
Rear Tire	Maxxis Minion DHR II 3C EXO+ 29x2.4"	Maxxis Minion DHR II 3C EXO+ 29x2.4"	Maxxis Minion DHR II 3C EXO+ 29x2.4"	Maxxis Minion DHR II 3C EXO+ 29x2.4"	Maxxis Minion DHR II 3C EXO+ 29x2.4"
Crankset	SRAM XO Eagle DUB T-Type 165mm	Shimano XT FC-M8200 165mm	Shimano XT M8100 165mm	SRAM Eagle 90 DUB 165mm	SRAM Eagle 90 DUB 165mm
Chainring	30t	30t	30t	30t	30t
Rear Derailleur	SRAM XO AXS Eagle Transmission 12spd	Shimano XT Di2 RD-M8250 12spd	Shimano XT M8100 SGS 12spd	SRAM Eagle 90 12spd	SRAM Eagle 90 12spd
Cassette	SRAM XS 1295 T-Type 10-52t	Shimano XT CS-M8200-12 10-52t	Shimano XT M8100 10-51t	SRAM XS 1275 T-Type 10-52t	SRAM XS 1275 T-Type 10-52t
Chain	SRAM XO Eagle Transmission	Shimano XT CN_M8100	Shimano XT M8100	SRAM GX Eagle Transmission	SRAM GX Eagle Transmission
Shifters	SRAM POD Ultimate Bridge MMX	SHimano XT Di2 SW-M8250	Shimano XT M8100 iSpec EV	SRAM Eagle 90 MMX	SRAM Eagle 90 MMX
Brakes	SRAM Maven Silver	Shimano XT BR-M8220 4 Piston	Shimano XT M8120 4 Piston	SRAM Maven Bronze	SRAM Maven Bronze
Front Brake Rotor	SRAM HS2 200mm	Shimano RT86 203mm	Shimano RT86 203mm	SRAM Centerline 200mm	SRAM Centerline 200mm
Rear Brake Rotor	SRAM HS2 180mm	Shimano RT86 203mm	Shimano RT86 203mm	SRAM Centerline 200mm	SRAM Centerline 200mm
Handlebars	OneUp Carbon Bar	OneUp Carbon Bar	ANVL Mandrel Alloy 35	ANVL Mandrel Alloy 35	ANVL Mandrel Alloy 35
Grips	ODI Elite Flow Lock-On	ODI Elite Flow Lock-On	ODI Elite Flow Lock-On	ODI Elite Flow Lock-On	ODI Elite Flow Lock-On
Stem	ANVL Swage 40mm	ANVL Swage 40mm	ANVL Swage 40mm	ANVL Swage 40mm	ANVL Swage 40mm
Headset	FSA No.57E	FSA No.57E	FSA No.57E	FSA No.57E	FSA No.57E
Seatpost	Fox Transfer Factory	OneUp Dropper Post	OneUp Dropper Post	OneUp Dropper Post	OneUp Dropper Post
Saddle	SDG Bel Air 3 LUX	SDG Bel Air 3 LUX	SDG Bel Air 3	SDG Bel Air 3	SDG Bel Air 3

All specifications subject to change without notice

---

Sizing Guide

Rider Height	Suggested Frame Size
4'10" - 5'2"	XS
5'2" - 5'6"	Small
5'6" - 5'10"	Medium
5'10" - 6'2"	Large
6'2" - 6'6"	X-Large
6'4" - 6'8"	XX-Large

Sizing

Available in multiple sizes to fit a wide range of riders.
Contact us if you need help choosing the correct size.

---

🛒 Ready to Ride?

Order your Transition Sentinel V3 today and experience one of the most respected mountain bikes ever made.
