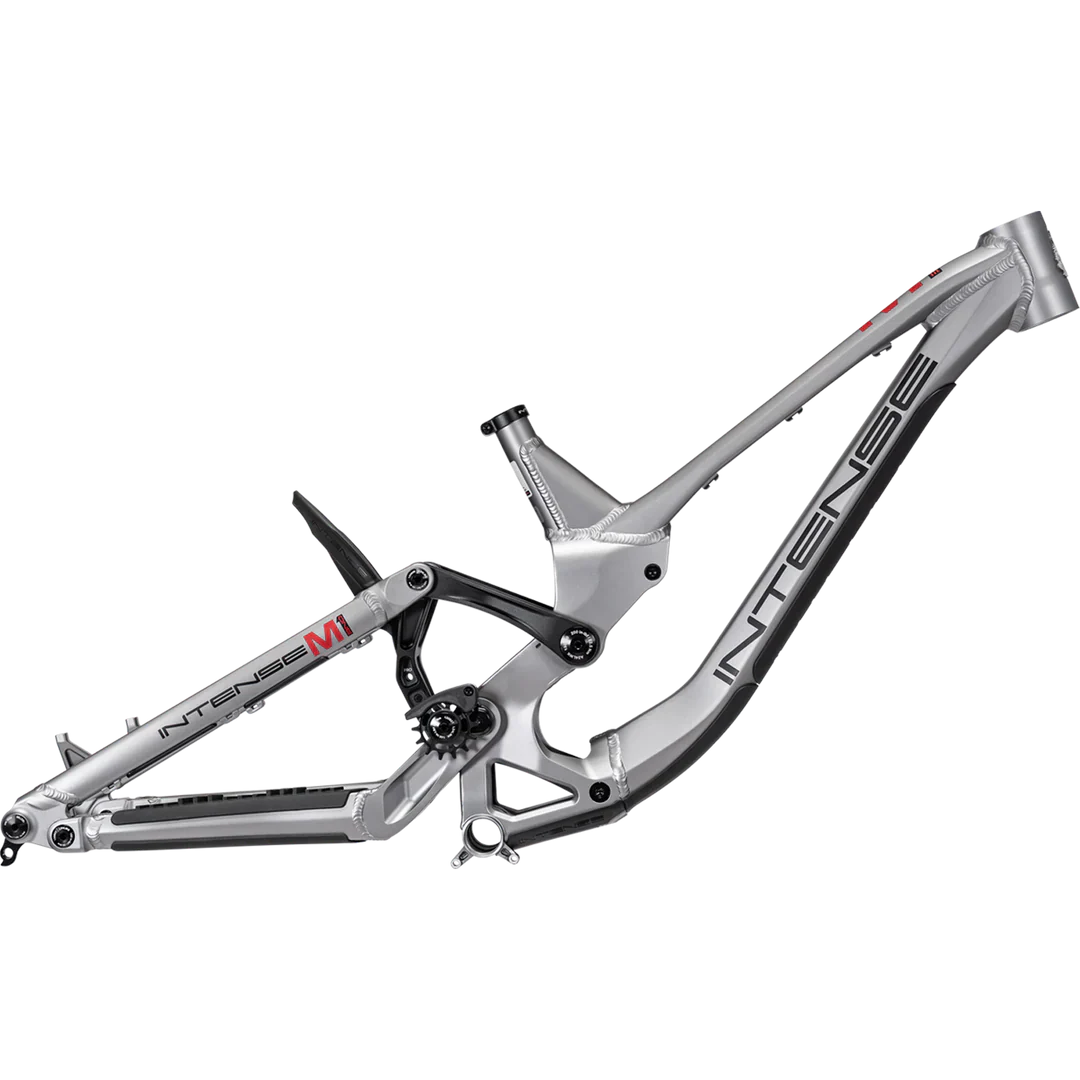

The M1 has 203mm (linear) / 212mm (progressive) of rear travel and is built around a 6-link, high-pivot, 6061-T6 aluminum frame. The M1 is a race-proven winner. Designed for a 279 wheelset, developed, and perfected by our engineers and the INTENSE Factory Racing team on the World Cup circuit to be the fastest downhill bike.

Technical Specifications

Max Front Travel	203mm (Dual Crown Only)
Max Rear Travel	203mm (Linear) / 212mm (Progressive)
Rear Travel Shock Positions	Linear = 27% Progression With 203mm of Travel Progressive = 31% Progression With 212mm of Travel
Headset	ZS56 Upper / ZS56 Lower (No External Cup Headsets)
Seattube Diameter	31.6mm
Seatpost Clamp	36.4mm
Max Seatpost Insertion Depth	(S)120mm (M)120mm (L)155mm (XL)170mm
BB Shell Width	BSA 83mm
Max Chainring	34t
Chainline	55mm E-Thirteen, Race Face Atlas (No Idler Spacer Kit) 56.5mm SRAM, TRP, and Hope (1 Idler Spacer Kit) 57.9mm Shimano (2 Idler Spacer Kit)
Recommened Max Tire Width	2.5"
Brakes	Disc Brake Hydraulic, Post Mount/Direct
Min Brake Rotor Size	200mm
Max Brake Rotor Size	223mm (with adapter)
Derailleur Hanger	Intense M1 Hanger
T-Type Compatible	N/A
Rear Hub Spacing	157x12mm through axle Super Boost
Shock Size	250x75mm
Front Shock Mount Hardware	8x40mm
Rear Shock Mount Hardware	8x20mm

All specifications subject to change without notice

Sizing

Available in multiple sizes to fit a wide range of riders.
Contact us if you need help choosing the correct size.

🛒 Ready to Ride?

Order your Intense M1 frame today and experience one of the most respected mountain bikes ever made.
